Diamond blades for cutting concrete

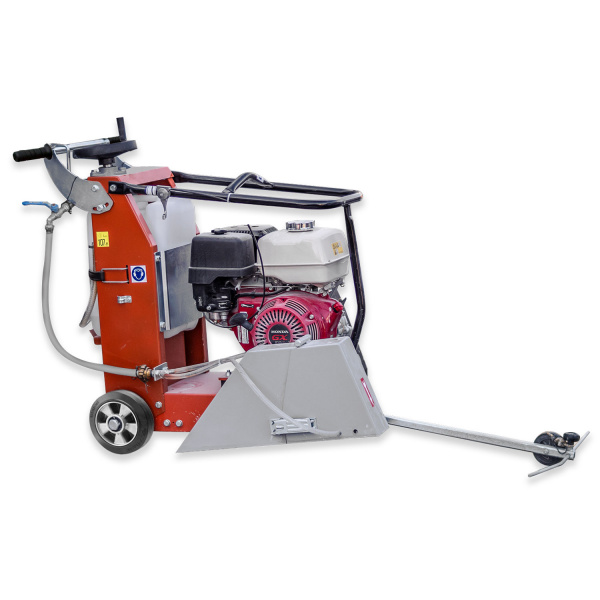

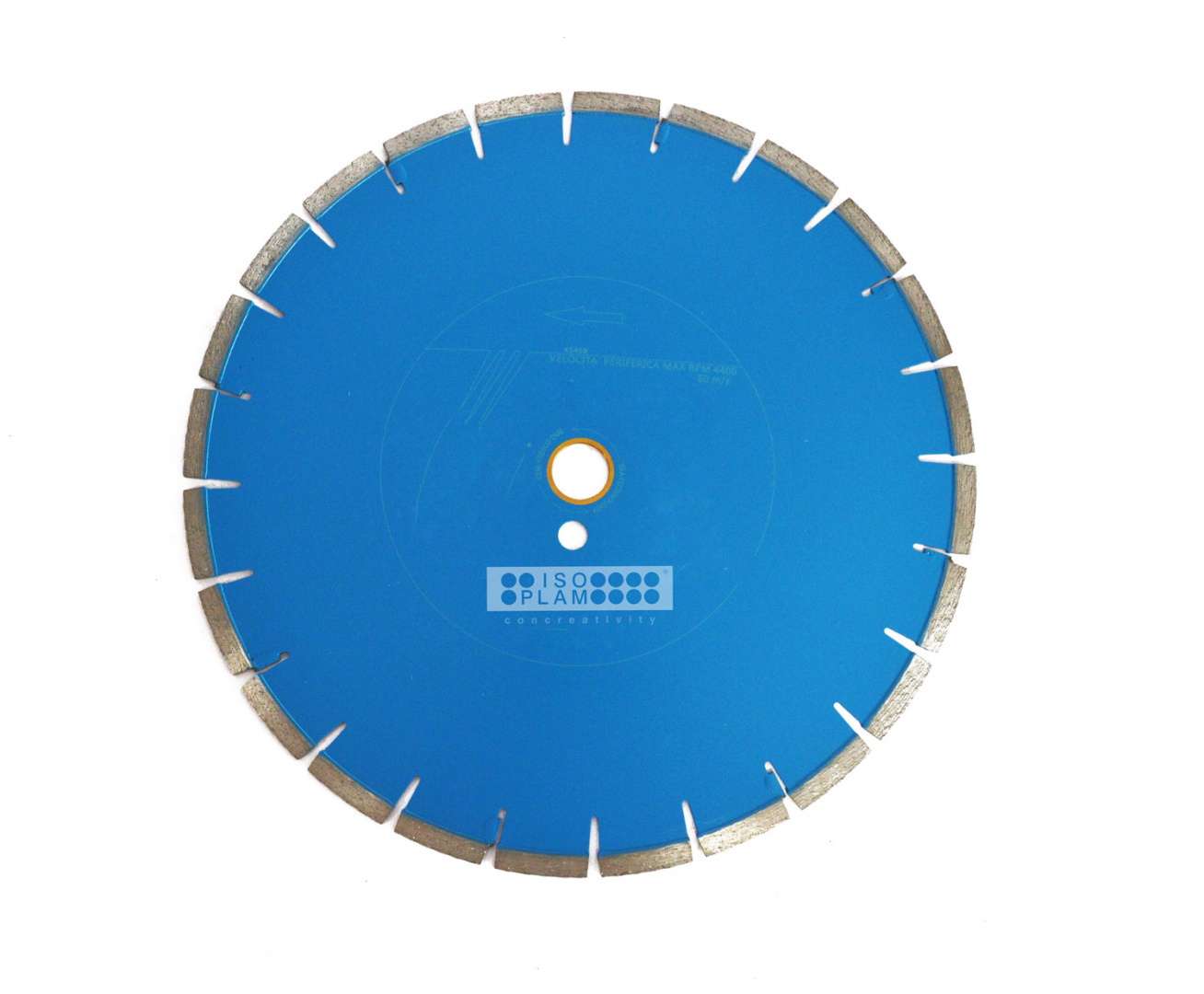

Isoplam cutting discs are applied to joint cutting machines for the creation of control joints on fresh or cured concrete floors. The diamond tools for cutting concrete are made with quality materials to guarantee constant, fast and long-lasting cutting performance in professional use. The Isoplam diamond disc allows you to obtain clean cutting surfaces without burrs and is available in various diameters, thicknesses and types. Isoplam discs comply with the safety requirements for superabrasive products according to EN 13236.
| Code |
Size |
Thickness |
Features |
| D480002 |
Ø = 30 cm |
2,4 mm fresh concrete |
Disc with a diameter of 300 mm, thickness of 2.4 mm for fresh concrete with soft to very hard aggregates. It allows you to quickly create joints with very clean edges. |
| D480003 |
Ø = 30 cm |
2,8 mm |
|
| D480004 |
Ø = 35 cm |
2,8 mm |
Disc with a diameter of 350 mm, thickness of 2.8 mm, height of the sectors 13 mm and hole diameter of 25.4 mm for fresh concrete with soft to very hard aggregates. Suitable for machines up to 25 kW / hydr. up to 50 kW universal. It is equipped with a protection segment against wear of the steel core. It allows you to quickly create joints with very clean edges. |
| D480005 |
Ø = 35 cm |
3,2 mm fresh concrete |
Disc with diameter 350 mm, thickness 3.2 mm, sector height 13 mm and hole diameter 25.4 mm for fresh concrete with soft to very hard aggregates. Suitable for machines up to 50 kW / hydr. >50 kW universal. It is equipped with a protection segment against wear of the steel core. It allows you to quickly create joints with very clean edges. |
| D480006 |
Ø = 50 cm |
3,6 mm mature concrete |
Disc with a diameter of 500 mm, thickness of 3.6 mm, height of the sectors 12 mm and hole diameter of 25.4 mm for cured concrete with soft to very hard aggregates. Suitable for machines up to 15 kW. The cutting disc for mature concrete has a reference hole for controlling the consumption height of the segments. |
